SyncManager Class Reference
[Client]
#include <SyncManager.h>

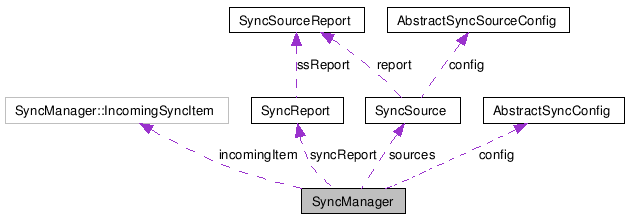

Collaboration diagram for SyncManager:
Classes | |
| struct | CommandInfo |
| class | IncomingSyncItem |
Public Member Functions | |
| SyncManager (AbstractSyncConfig &config, SyncReport &report) | |
| ~SyncManager () | |
| int | prepareSync (SyncSource **sources) |
| int | sync () |
| int | endSync () |
| DevInf * | createDeviceInfo () |
Detailed Description
This is the core class which encodes the flow of messages between client and server throughout a session. It is configured via the DMTClientConfig with which it is constructed by the SyncClient::setDMConfig() and the (optional) DevInf provided to it by the client.Definition at line 77 of file SyncManager.h.
Constructor & Destructor Documentation
| SyncManager::SyncManager | ( | AbstractSyncConfig & | config, | |
| SyncReport & | report | |||
| ) |
Initialize a new sync manager. Parameters provided to it have to remain valid while this sync manager exists.
- Parameters:
-
config required configuration report sync report reference to store sync results
| SyncManager::~SyncManager | ( | ) |
Member Function Documentation
| DevInf* SyncManager::createDeviceInfo | ( | ) |
Gathers the various bits and pieces known about the client and its sources and builds a SyncML devinfo 1.1 instance.
For simplicity reasons this function is called for the currently active sync sources, changing them between runs thus causes a (valid!) retransmission of the device info.
- Returns:
- device infos, to be deleted by caller, or NULL if unavailable
| int SyncManager::endSync | ( | ) |
Performs the commit phase of the synchronization.
| int SyncManager::prepareSync | ( | SyncSource ** | sources | ) |
Prepares the sync, performing authentication and device capability exchange.
| int SyncManager::sync | ( | ) |
Starts the synchronization phase
- Returns:
- a status code for the sync. Can be: 0 on success an interal code (see: TODO) a status code from the server
The documentation for this class was generated from the following file:
- build-client-api/include/common/spds/SyncManager.h
