CacheSyncSource Class Reference
[Client]

#include <CacheSyncSource.h>

Inheritance diagram for CacheSyncSource:

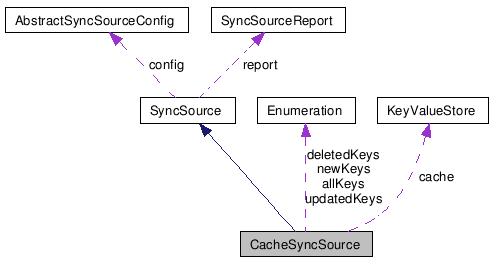

Collaboration diagram for CacheSyncSource:

List of all members.

Public Member Functions

CacheSyncSource (const WCHAR *name, AbstractSyncSourceConfig *sc, KeyValueStore *cache=NULL)

virtual ~CacheSyncSource ()

void setItemStatus (const WCHAR *key, int status, const char *command)

SyncItem * getFirstItemKey ()

SyncItem * getNextItemKey ()

SyncItem * getFirstItem ()

SyncItem * getNextItem ()

SyncItem * getFirstNewItem ()

SyncItem * getNextNewItem ()

SyncItem * getFirstUpdatedItem ()

SyncItem * getNextUpdatedItem ()

SyncItem * getFirstDeletedItem ()

SyncItem * getNextDeletedItem ()

void serverStatusPackageEnded ()

void clientStatusPackageEnded ()

int endSync ()

virtual StringBuffer getItemSignature (StringBuffer &key)

virtual void * getItemContent (StringBuffer &key, size_t *size)=0

virtual Enumeration * getAllItemList ()=0

virtual int insertItem (SyncItem &item)=0

virtual int modifyItem (SyncItem &item)=0

virtual int removeItem (SyncItem &item)=0

Protected Member Functions

int saveCache ()

int addItem (SyncItem &item)

int updateItem (SyncItem &item)

int deleteItem (SyncItem &item)

int updateInCache (KeyValuePair &k, const char *action=REPLACE)

int insertInCache (KeyValuePair &k)

int removeFromCache (KeyValuePair &k)

Detailed Description

This is an extension of the basic SyncSource that a SyncML client developer could implement to let the sync engine access the client's data. It provides the logic to retrieve the item modification to be exchanged with the server

Definition at line 66 of file CacheSyncSource.h.

Constructor & Destructor Documentation

CacheSyncSource::CacheSyncSource	(	const WCHAR *	name,
		AbstractSyncSourceConfig *	sc,
		KeyValueStore *	cache = `NULL`
	)

Constructor: create a CacheSyncSource with the specified name

Parameters:

	name	the name of the SyncSource
	sc	configuration for the sync source: the instance must remain valid throughout the lifetime of the sync source because it keeps a reference to it and uses it as its own. A NULL pointer is allowed for unit testing outside of the sync framework; the sync source then references a global config instance to avoid crashes, but modifying that config will not make much sense. The pointer may also be set directly after creating the SyncSource, which is useful when a derived class creates the config in its own constructor.
	cache	the store for the cache. Released by the CacheSyncSource

virtual CacheSyncSource::~CacheSyncSource ( ) [virtual]

Member Function Documentation

int CacheSyncSource::addItem ( SyncItem & item ) [protected, virtual]

Called by the sync engine to add an item that the server has sent. The implementation calls the insertItem method that must be implemented by the user. Also used to update the item

Implements SyncSource.

void CacheSyncSource::clientStatusPackageEnded ( ) [inline, virtual]

Indicates that all the client status of the current package of the server items that has been processed by the client and are going to be sent to the server. This signal can be useful to update the modification arrays NOT USED at the moment

Reimplemented from SyncSource.

Definition at line 304 of file CacheSyncSource.h.

int CacheSyncSource::deleteItem ( SyncItem & item ) [protected, virtual]

Called by the sync engine to update an item that the source already should have. The item's key is the local key of that item, no data is provided.

Parameters:

item

the item as sent by the server

Implements SyncSource.

int CacheSyncSource::endSync ( ) [virtual]

In the first implementatation, in which serverStatusPackageEnded and clientStatusPackageEnded are not yet impelemented, the end sync will udpate the whole cache status persistently.

Reimplemented from SyncSource.

virtual Enumeration* CacheSyncSource::getAllItemList ( ) [pure virtual]

Get an array list containing all the StringBuffer keys of all items. Used for the sync requiring and exchange of all items and for the sync that need to calculate the modification. It has to return a new allocated Enumeration that is freed by the CacheSyncSource

SyncItem* CacheSyncSource::getFirstDeletedItem ( ) [virtual]

Return the first SyncItem of updated one. It is used in case of fast sync and retrieve the new data source content.

Implements SyncSource.

SyncItem* CacheSyncSource::getFirstItem ( ) [virtual]

Return the first SyncItem of all. It is used in case of slow sync and retrieve the entire data source content.

Implements SyncSource.

SyncItem* CacheSyncSource::getFirstItemKey ( ) [inline, virtual]

Return the key of the first SyncItem of all. It is used in case of refresh sync and retrieve all the keys of the data source.

Deprecated:: no more used. use removeAllItems instead.

Implements SyncSource.

Definition at line 229 of file CacheSyncSource.h.

SyncItem* CacheSyncSource::getFirstNewItem ( ) [virtual]

Return the first SyncItem of new one. It is used in case of fast sync and retrieve the new data source content.

Implements SyncSource.

SyncItem* CacheSyncSource::getFirstUpdatedItem ( ) [virtual]

Return the first SyncItem of updated one. It is used in case of fast sync and retrieve the new data source content.

Implements SyncSource.

virtual void* CacheSyncSource::getItemContent	(	StringBuffer &	key,
		size_t *	size
	)			`[pure virtual]`

Get the content of an item given the key. It is used to populate the SyncItem before the engine uses it in the usual flow of the sync.

Parameters:

	key	the local key of the item
	size	OUT: the size of the content

virtual StringBuffer CacheSyncSource::getItemSignature ( StringBuffer & key ) [virtual]

Get the signature of an item given the key. The signature could be a crc computation or a timestamp or whatever can identify uniquely the content of an item. The default implementation uses a crc computation of the value. Overriding implementation could provide something different like the timestamp or other...

Parameters:

key

the key of the item.

Returns:: the signature of the selected item

SyncItem* CacheSyncSource::getNextDeletedItem ( ) [virtual]

Return the next SyncItem of updated one. It is used in case of fast sync and retrieve the new data source content.

Implements SyncSource.

SyncItem* CacheSyncSource::getNextItem ( ) [virtual]

Return the next SyncItem of all. It is used in case of slow sync and retrieve the entire data source content.

Implements SyncSource.

SyncItem* CacheSyncSource::getNextItemKey ( ) [inline, virtual]

Return the key of the next SyncItem of all. It is used in case of refresh sync and retrieve all the keys of the data source.

Deprecated:: no more used. use removeAllItems instead.

Implements SyncSource.

Definition at line 237 of file CacheSyncSource.h.

SyncItem* CacheSyncSource::getNextNewItem ( ) [virtual]

Return the next SyncItem of new one. It is used in case of fast sync and retrieve the new data source content.

Implements SyncSource.

SyncItem* CacheSyncSource::getNextUpdatedItem ( ) [virtual]

Return the next SyncItem of updated one. It is used in case of fast sync and retrieve the new data source content.

Implements SyncSource.

int CacheSyncSource::insertInCache ( KeyValuePair & k ) [inline, protected]

To insert in the cache.

Definition at line 173 of file CacheSyncSource.h.

References updateInCache().

virtual int CacheSyncSource::insertItem ( SyncItem & item ) [pure virtual]

Called by the sync engine to add an item that the server has sent. The sync source is expected to add it to its database, then set the key to the local key assigned to the new item. Alternatively the sync source can match the new item against one of the existing items and return that key.

Parameters:

item

the item as sent by the server

Returns:: SyncML status code

virtual int CacheSyncSource::modifyItem ( SyncItem & item ) [pure virtual]

Called by the sync engine to update an item that the source already should have. The item's key is the local key of that item.

Parameters:

item

the item as sent by the server

Returns:: SyncML status code

int CacheSyncSource::removeFromCache ( KeyValuePair & k ) [inline, protected]

To remove from cache

Definition at line 180 of file CacheSyncSource.h.

References updateInCache().

virtual int CacheSyncSource::removeItem ( SyncItem & item ) [pure virtual]

Called by the sync engine to update an item that the source already should have. The item's key is the local key of that item, no data is provided.

Parameters:

item

the item as sent by the server

int CacheSyncSource::saveCache ( ) [protected]

Save the current cache in what is implemented by KeyValueStore (a file or wathever).

void CacheSyncSource::serverStatusPackageEnded ( ) [inline, virtual]

Indicates that all the server status of the current package of the client items has been processed by the engine. This signal can be useful to update the modification arrays NOT USED at the moment

Reimplemented from SyncSource.

Definition at line 295 of file CacheSyncSource.h.

void CacheSyncSource::setItemStatus	(	const WCHAR *	key,
		int	status,
		const char *	command
	)			`[virtual]`

called by the sync engine with the status returned by the server for a certain item that the client sent to the server. It contains also the proper command associated to the item. It is used to update the current array of cache.

Parameters:

	key	- the local key of the item
	status	- the SyncML status returned by the server
	command	- the SyncML command associated to the item

Reimplemented from SyncSource.

int CacheSyncSource::updateInCache	(	KeyValuePair &	k,
		const char *	action = `REPLACE`
	)			`[protected]`

Used to update the cache adding, replacing or deleting. The KeyValuePair contains the pair UID/signature. It is provided by the proper method who calls this. It udpates the cache that is in memory. The action by default is Replace.

Referenced by insertInCache(), and removeFromCache().

int CacheSyncSource::updateItem ( SyncItem & item ) [protected, virtual]

Called by the sync engine to update an item that the source already should have. The item's key is the local key of that item.

Parameters:

item

the item as sent by the server

Returns:: SyncML status code

Implements SyncSource.

The documentation for this class was generated from the following file:

build-client-api/include/common/client/CacheSyncSource.h
